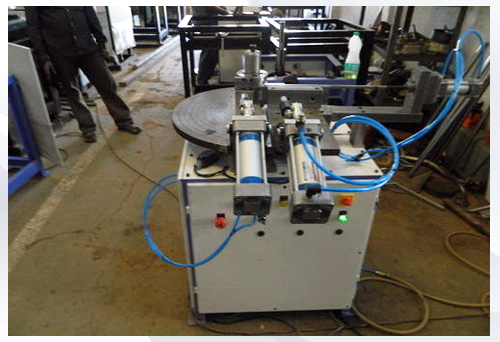

We are Manufacturer, Supplier, Exporter, Services Provider of Automatic Bending Machines like Semi Automatic Tube Bending Machines With Pneumatic Clamping and our setup is situated in Nashik, Maharashtra, India.

Automation Grade Semi-Automatic
Country of Origin Made in India
Type Semi Automatic Tube Bending Machines
I Deal In New only
Portable Yes
Feature With Pneumatic Clamping

These Semi Automatic Tube Bending Machines is which have found its usage in diverse sectors of engineering and automotive. These pipe bending machines are compact with a sturdy looks and useful for mass production. These machines are semi automatic and are suitable for ERW, stainless steel , and seamless tubes up to 7mm thick & 38 mm dia.
Made from the premium grade materials this machine comprises of the features such as:
• Higher performance
• Easy to use
• Durable
• Lesser cost of maintenance
Some of the industries that widely recommend this machine include:
• Furnitures
• Two wheeler accessories
• Decorative items
• Automativeseat frames
• Hydraulic piping
• Chemical & Process tubes & Heat Exchanger Concentric Tubes etc.
These high performance machines are widely used for bending a variety of pipes / tubes such as:
• Round, square, rectangular pipes up to 63 mm.
• Round, square
• Rectangular solid section up to 32 mm.
• C Sections concave and convex
Some of the application areas of these bending machines include:
• Two wheeler accessories like handle bars, side carrier, saree guards
• Four wheeler seat frames and railway births, beds etc.
• For construction purpose like `G Pin, lattice bar bending, ladder bracket
• Chemical pump piping
• `U tube bending for heat exchangers
• Bus body manufacturing units
• Exhaust pipes for two, four wheeler, trucks etc.
• Hospital / kitchen furniture, kitchen trolleys etc.
• Office / domestic furniture

SHM-20 TC upto 30mm SHM-20 PN upto 30mm SHM-20 NC/PLC upto 30mm
Bending Capacity (Tube OD in mm) upto 30mm upto 30mm upto 30mm
Bending Capacity (Sq/Rect Tubes in mm ) upto 25mm upto 25mm upto 25mm
Bending Capacity (Solid Bars in mm ) upto 16mm upto 16mm upto 16mm
Tube Material MS/SS/Cu/AI/Brass/Cupro-Nickel
Bending Angle 1 to 180 deg
Bending Direction Clockwise or Anticlockwise
Bending Radius (CLR) min 1.5D to 250mm, Extra (upto 800mm) on Request
Ele Power Reqd. 2 HP 3 HP 3 HP
Bending Speed 6 RPM 6 RPM 6 RPM
Bend Accuracy 0.25 deg
Length Setting With Mechanical Stoppers
Tube Indexing With Proper Fixturing
Bending Angle Setting Limit/Proxy Switches NC/PLC
Production Rate 200 Bends/Hr 200-400 Bends/Hr 200-400 Bends/Hr x
Mandrel Length 1.5 mtr STD / Extra Length at Cost
Tube Clamping Operation With Manual
With Pneumatic Cylinders
Pressure Die Operation With Manual
With Pneumatic Cylinders
Mandrel Operation Fixed With Pneumatic Cylinders
