Roller Bending machine for bending sheet metal with variable axis is used for bending medium to thick sheet metal. They are very precise and easy to use. There is an advantage to using this system in that the two side rollers move horizontally - left and right, while the top roller moves up and down. When material is loaded into the machine, it does not tilt upwards, as happens with three rollers bent with a double clamp, but remains parallel to the floor, which allows for easier and safer material handling. If you position the side roll in its outermost position, you can increase the rolling capacity by up to 50% more compared to conventional 3 or 4 roll bending machines. Three drive rollers provide complete control over the bending process.

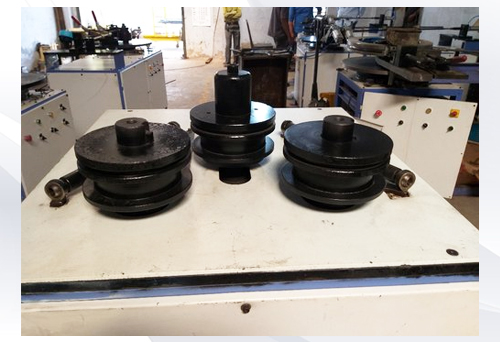

Shamam Engineers is a prominent firm engaged in manufacturing and supplying 3-Roll Bending Machine. Machine can bend round shape up to 100mm tube diameter. 3-Roll Bending Machine can be used to manufacture corona ring required for electrical transmission and also bend C- channel section and angle to any radius. Recently Shamam Engineers developed new 3 models of 3-Roll Bending Machine with 5 HP motor and gear box and hydraulic actuation of pusher roller.
Application : 3-Roll Bending Machine is widely used in different sectors such as patti bending, arch, channel bending, section bending ship-building, petroleum, boilers, chemical, metal structure and machinery manufacturing industries.
Features :
• User friendly and easy to operate
• High stability and durability.
• Trouble free operation
Specifications :
• Number of roller: 3
• Maximum Diameter: 100 MM
• Shape: Round
• Maximum bending angle: 180 Degree
• Roll Material : Stainless steel
• Automatic grade: Semi-automatic
| Model No: | SHM TRP-38 | SHM TRP-50 | SHM TRP-75 |
|---|---|---|---|
| Capacity | 38 mm OD or 38mm sq. pipe | 50 mm OD or 50mm sq. pipe | 75x75x5 mm pipe or 75mm OD pipe |
|
|
||||||||||||
