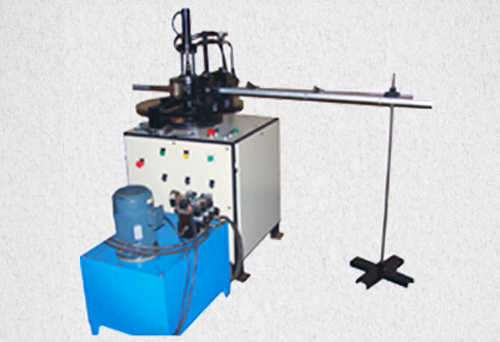

We are Manufacturer, Supplier, Exporter, Services Provider of Automatic Bending Machines like Tube Bending Machines With Toggle Clamp, Bar Bending Machines With Toggle Clamp, Toggle Clamping Machines and our setup is situated in Nashik, Maharashtra, India
|
We have been able to establish a niche in the domain. We have a robust infrastructure and a skilled workforce who are regarded as the backbone of our organization.
SEMI AUTOMATIC TUBE BENDING MACHINES | |||
MODEL NO |
SHM-20 TC upto 30mm | SHM-20 PN upto 30mm | SHM-20 NC/PLC upto 30mm |
Bending Capacity (Tube OD in mm) | upto 30mm | upto 30mm | upto 30mm |
Bending Capacity (Sq/Rect Tubes in mm ) | upto 25mm | upto 25mm | upto 25mm |
Bending Capacity (Solid Bars in mm ) | upto 16mm | upto 16mm | upto 16mm |
Tube Material | MS/SS/Cu/AI/Brass/Cupro-Nickel | ||
Bending Angle | 1 to 180 deg | ||
Bending Direction | Clockwise or Anticlockwise | ||
Bending Radius (CLR) | min 1.5D to 250mm, Extra (upto 800mm) on Request | ||
Ele Power Reqd. | 2 HP | 3 HP | 3 HP |
Bending Speed | 6 RPM | 6 RPM | 6 RPM |
Bend Accuracy | 0.25 deg | ||
Length Setting | With Mechanical Stoppers | ||
Tube Indexing | With Proper Fixturing | ||
Bending Angle Setting | Limit/Proxy Switches | NC/PLC | |
NC/PLC Controls | OPTIONAL AT EXTRA COST | NA | |
Production Rate | 200 Bends/Hr | 200-400 Bends/Hr | 200-400 Bends/Hr x |
Mandrel Length | 1.5 mtr STD / Extra Length at Cost | ||
Tube Clamping Operation | With Manual Clamps |
With Pneumatic Cylinders | |
Pressure Die Operation | With Manual Clamps |
With Pneumatic Cylinders | |
Mandrel Operation | Fixed | With Pneumatic Cylinders |
